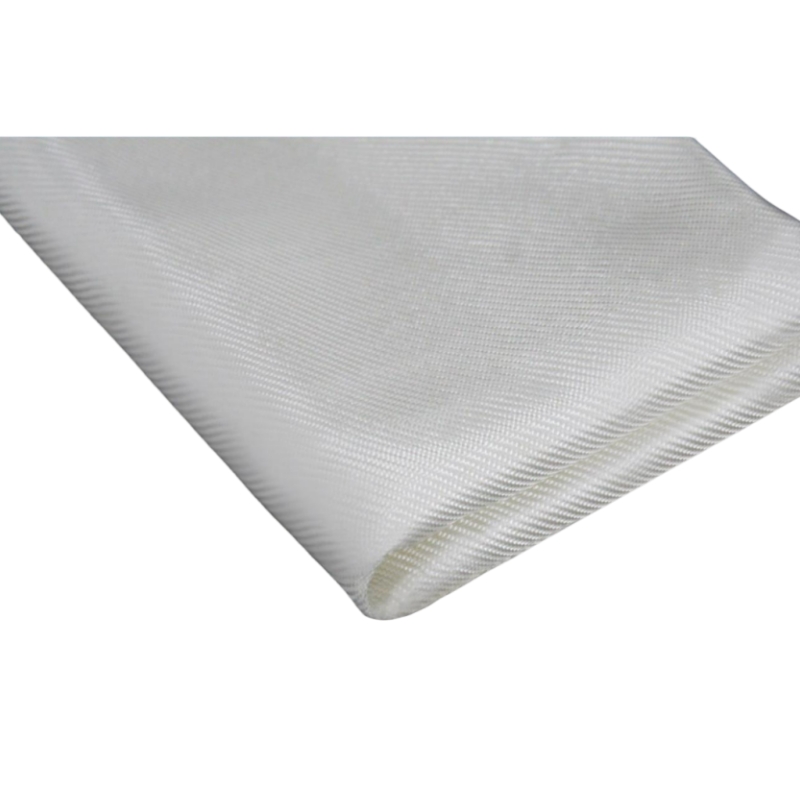

Alumina Fiber Fabric for Aerospace Use has good performance against thermal shock, is widely used in aerospace line.
Item No :
MQ-AFOrder(MOQ) :
100mPayment :
TT, LC, PaypalProduct Origin :
ChinaColor :
WhiteShipping Port :
Shanghai, Ningbo, QingdaoLead Time :
Abundant stocks, can be dispatched out immediately.Description
MQ Alumina Fiber Fabric weight varies from 200 to 900 g/m2. Weaving is available in plain, twill and satin. Standard specification is 100 cm in width and 50 m per package, custom size also is available.
Supporting special coating includes CH for reinforcement and AR for abrasive resistance.
Pre-shrunk at 1000℃ can also be applied to avoid any shrinkage or deformation under elevated temperature usage.
Advantages of Alumina Fiber Fabric are as followings:
1. Low heat conductivity coefficient and heat capacity, good performance against thermal shock.
2. Outstanding electrical insulation under elevated temperatures with long lifespan.
2. Outstanding ability against etching of nonferrous metals such as Aluminum and Zinc.
3. Admirable strength under both low and high temperatures.
Specification
| Part No. | Yarn (Tex) | Density（pc/cm） | Weaving Type | Weight（g/m2） | Thickness（mm） | Roll length（m） | |
| Warp | Weft | ||||||
| MQ-AF-240 | 100 | 12 | 12 | Twill/Satin | 245 | 0.18 | 25/50 |
| MQ-AF-270 | 100 | 12 | 15 | Twill/Satin | 275 | 0.22 | 25/50 |
| MQ-AF-320 | 100 | 8 | 8 | Twill/Satin | 330 | 0.30 | 25/50 |
| MQ-AF-400 | 100 | 10 | 10 | Twill/Satin | 410 | 0.40 | 25/50 |
| MQ-AF-480 | 100 | 12 | 12 | Twill/Satin | 490 | 0.50 | 25/50 |
| MQ-AF-560 | 100 | 14 | 14 | Twill/Satin | 560 | 0.60 | 25/50 |
| MQ-AF-640 | 100 | 8 | 8 | Twill/Satin | 660 | 0.65 | 25/50 |
| MQ-AF-840 | 100 | 12 | 8 | Twill/Satin | 840 | 0.73 | 25/50 |
| MQ-AF-180 | 100 | 9 | 9 | Plain | 180 | 0.15 | 25/50 |
| MQ-AF-340 | 150 | 12 | 11 | Twill/Satin | 325 | 0.26 | 25/50 |
| MQ-AF-540 | 150 | 9 | 9 | Twill/Satin | 530 | 0.50 | 25/50 |
| MQ-AF-600 | 150 | 10 | 10 | Twill/Satin | 600 | 0.65 | 25/50 |
| MQ-AF-960 | 150 | 8 | 8 | Twill/Satin | 960 | 1.00 | 25/50 |
